Urinal Flush Control Edition E

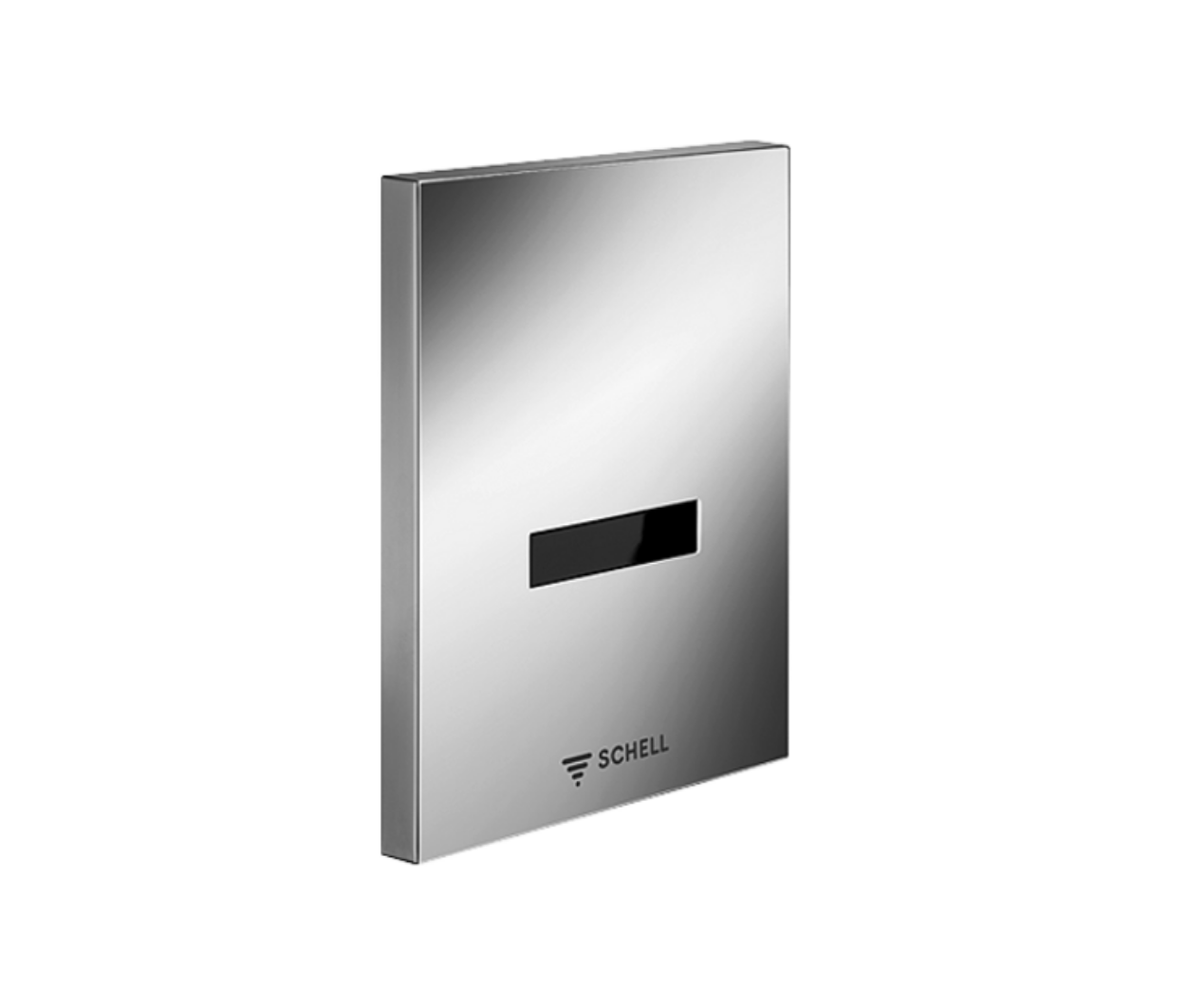

SCHELL: Urinal Control EDITION E Vandal-Resistant Design (Art. 02 809 28 99)

The SCHELL EDITION E is a contact-free infrared sensor urinal flush control designed to minimise water consumption and eliminate physical contact in public and commercial washrooms. The unit detects user presence automatically and triggers a flush cycle only after use, preventing the wasteful timed-interval or continuous flushing still common in many public facilities. Its adjustable flush time (1–15 seconds) allows facility managers to calibrate water volume precisely to the specific urinal and plumbing configuration, avoiding over-flushing. The chrome-plated plastic front panel provides a clean, contemporary appearance suited to offices, commercial buildings, schools and hospitality environments. An automatic stadium programme is specifically designed for high-throughput venues, delivering a short per-user pre-flush and consolidating the main flush after the last user departs, substantially reducing total water consumption during peak demand. The unit operates on mains power via a concealed transformer, removing the lifecycle waste of disposable batteries. Designed for use with the SCHELL COMPACT II concealed urinal flush valve or MONTUS urinal module (sold separately). Compatible with SCHELL’s SWS Water Management System and SSC Bluetooth module. Made in Germany. Available in Kenya through Tile and Carpet Centre.

Key Technical Specifications

• Contact-free infrared sensor activation with adjustable detection range (short / medium / long)
• Front panel material: plastic with chrome surface finish

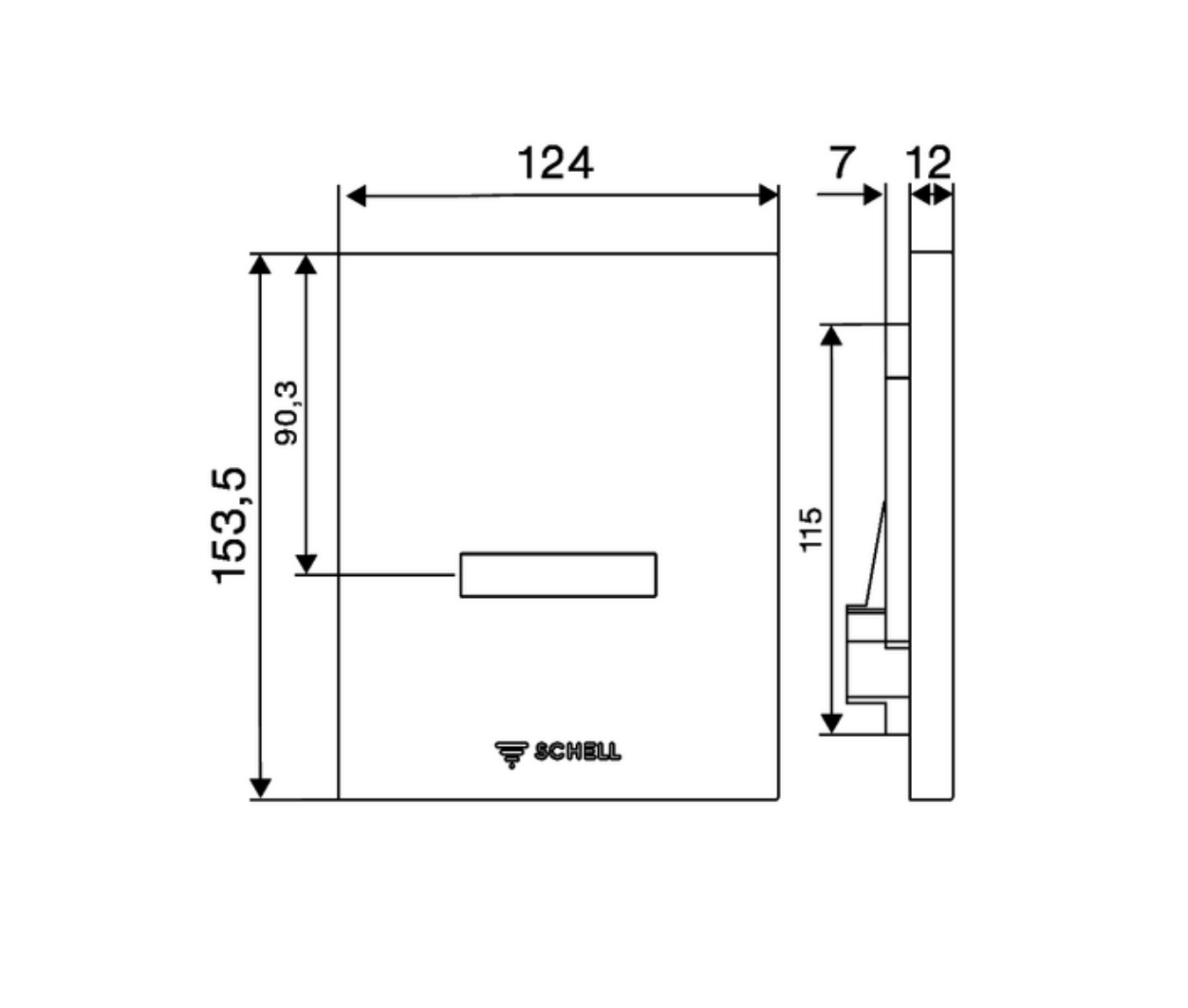

• Front panel dimensions: 124 mm (W) × 153.5 mm (H) × 12 mm (D)
• Power supply: concealed transformer, 100–240 VAC, 50–60 Hz
• 6 V solenoid valve with integrated pre-filter
• Programmable flush time: 1–15 seconds
• Programmable stagnation flush: 5–600 seconds, every 1–240 hours after last flush or at fixed intervals
• Pre-flush function: 1-second burst with lockout time of 5–60 minutes after last flush
• Automatic stadium programme: 1-second flush per user with main flush 20–60 seconds after last use
• Odour trap flush: programmable at 1–240 hour intervals after last flush
• Energy saving mode: activates 1–254 hours after last flush
• Cleaning stop / rap flush: can be enabled or disabled
• All settings configurable via SCHELL SWS Water Management System or SCHELL SSC Bluetooth module
• Short range reflex programming available for basic on-site setup without digital tools
• Requires SCHELL COMPACT II concealed urinal flush valve (Art. 01 193 00 99) or SCHELL MONTUS urinal module (Art. 03 075 00 99) — sold separately
• Weight: 0.78 kg

Sustainability Features

1. Sensor-activated flushing — water is used only in direct response to actual urinal use, eliminating wasteful timed-interval or continuous flush cycles
2. Adjustable flush time (1–15 seconds) — enables precise calibration of water volume per flush to the specific urinal and plumbing configuration, preventing over-flushing
3. Automatic stadium programme — consolidates flushing in high-throughput environments, delivering short per-user pre-flushes and a single main flush after the last user departs, substantially reducing total water consumption during peak demand
4. Programmable stagnation flush — automatically flushes standing water at scheduled intervals during periods of non-use, preventing microorganism growth in seldom-used pipework without manual intervention
5. Odour trap flush — maintains the water seal in floor waste traps at programmable intervals, preventing sewer gas ingress and ensuring hygienic air quality without continuous water flow
6. Mains-powered operation — eliminates the lifecycle waste and replacement cost of disposable batteries
7. Compatible with SCHELL SWS Water Management System — enables centralised, building-wide water hygiene monitoring and flush management across all connected fittings
8. SCHELL fittings are classified under the WELL (Water Efficiency Label) rating system published by EUnited Valves, the European fittings association
