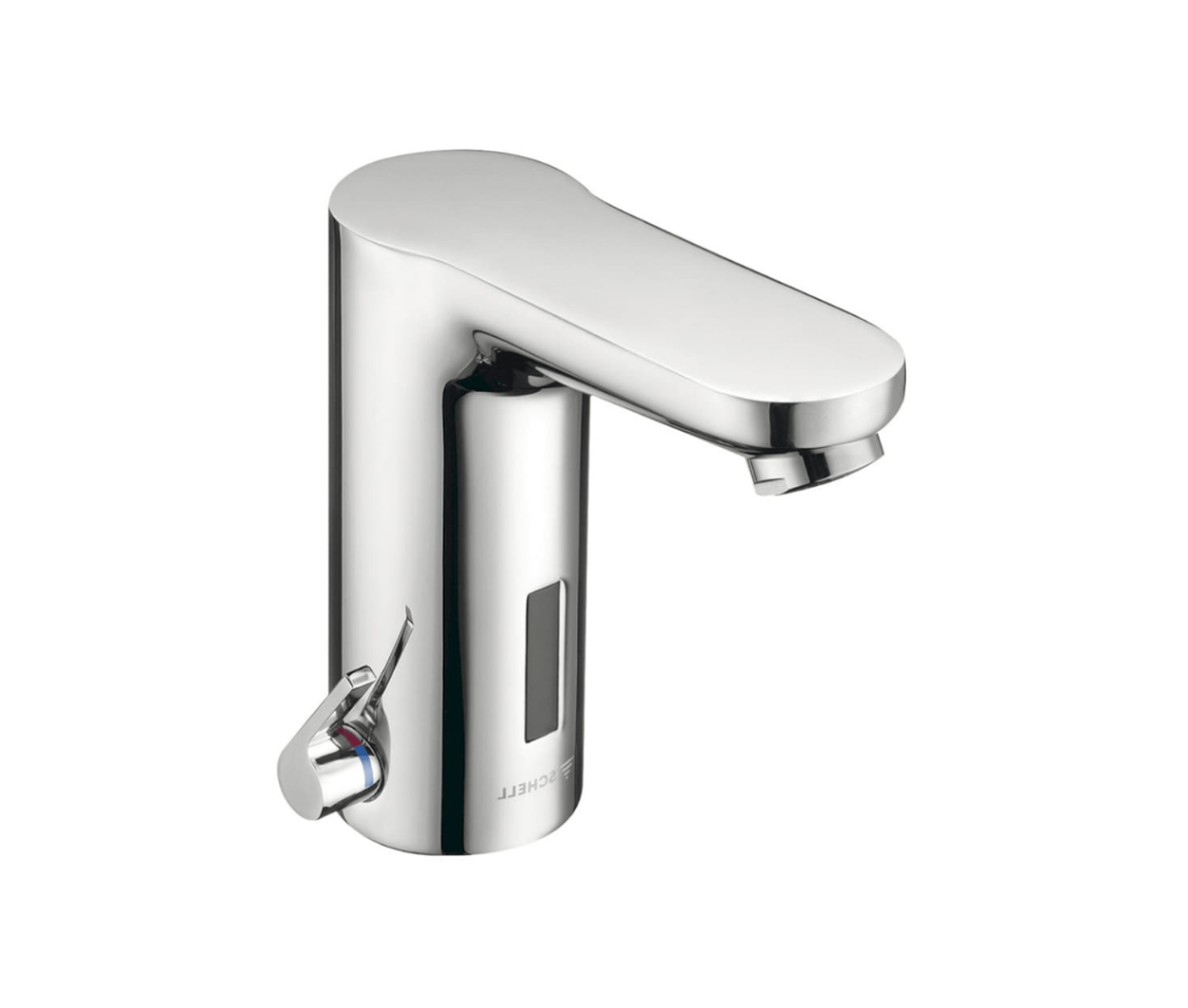

CELIS E HD-K Electronic Wash Basin Tap

TILE AND CARPET: SCHELL CELIS E Electronic Washbasin Tap HD-K (Art. 01 244 06 99)

The SCHELL CELIS E HD-K is an infrared sensor-controlled electronic washbasin tap designed for touch-free operation in public, semi-public and commercial sanitary facilities. Its contact-free activation delivers water only when hands are detected within the sensor range, eliminating the need to touch the tap body and significantly reducing cross-contamination risk in high-traffic washrooms. The vandal-resistant all-metal brass housing with a chrome-plated finish combines durability with a clean, modern aesthetic suited to offices, schools, healthcare facilities and hospitality environments. The CELIS E HD-K operates on mains power via a concealed transformer (9 VDC, 100–240 VAC, 50–60 Hz), removing the need for battery replacement and ensuring continuous, reliable operation. Programmable functions, including adjustable sensor range, stagnation flush scheduling, thermal disinfection and a cleaning stop mode, give facility managers direct control over drinking water hygiene and operational efficiency. The tap is also compatible with SCHELL’s SWS Water Management System and the SSC Bluetooth module for digital configuration via smartphone. Made in Germany.

Key Technical Specifications and Features

• Infrared sensor-controlled, contact-free operation
• HD-K configuration: for cold water or pre-mixed water (preheated water below 45 °C)
• Flow rate: maximum 5 l/min (pressure-independent)
• Flow pressure range: 1.0–5.0 bar; maximum resting pressure: 8 bar
• Maximum operating temperature: 70 °C (80 °C during thermal disinfection)
• Power supply: concealed transformer, 9 VDC / 100–240 VAC / 50–60 Hz
• Connection: G 3/8 IG with flexible Clean-Fix S hose (380 mm) and pre-filter
• Housing material: brass, compliant with German drinking water regulations; chrome-plated surface
• 6 V solenoid valve with integrated pre-filter and aerator
• Programmable sensor range (short / medium / long)
• Programmable stagnation flush with adjustable interval (5–600 seconds, every 1–240 hours)
• Thermal disinfection mode with anti-scalding protection (15–600 seconds)
• Cleaning stop function (60–360 seconds) to disable sensor during washroom cleaning
• Energy saving mode (activates 1–254 hours after last use)
• Configurable via SCHELL SSC Bluetooth module or SCHELL SWS Water Management System
• Noise class I; flow class Z
• Certification: P-IX 19116/IZ

Sustainability Features

1. The SCHELL CELIS E HD-K supports water conservation through its sensor-activated, demand-only flow design — water runs exclusively when hands are present in the detection zone, eliminating waste from taps left running or inadequately closed.
2. Contact-free electronic taps in the SCHELL range can deliver water savings of up to 62% compared to conventional manual taps.
3. The pressure-independent 5 l/min maximum flow rate provides consistent, controlled output regardless of supply pressure variation, preventing excess consumption.
4. The programmable stagnation flush function maintains drinking water hygiene during periods of non-use by automatically flushing standing water at scheduled intervals, reducing the risk of microorganism growth (including Legionella) without manual intervention.
5. Mains-powered operation eliminates the lifecycle waste and cost of disposable batteries.
6. All internal materials are approved for drinking water contact, and the durable brass and chrome construction is designed for long service life in high-use environments, reducing replacement cycles.
7. SCHELL fittings are classified under the WELL (Water Efficiency Label) rating system published by EUnited Valves, the European fittings association, and the manufacturer holds maximum international ratings for water saving.
